addImage

the embedding and positioning of the image within a complex paragraph.
the size (if not explicitely given, Javadocx tries to read the width and height from the image headers).
the dpi or dots per inch (by default they are taken from the image headers or set to 96 dpi).
the scale (default 100%).
the target: main document (default), headers or footers.

Together with some general formatting options.

If one wishes to insert an image within a complex paragraph or a table one should use this method in combination with the addText or the addTable method.

Parameters

options

Option	Type	Description
src	String	Path to the image that you want to insert into the Word document.
borderColor	String	hexadecimal color: FF0000.
borderStyle	String	Possible values are: solid dot dash lgDash dashDot lgDashDot lgDashDotDot sysDash sysDot sysDashDot sysDashDotDot
borderWidth	Integer	Given in emus (1cm = 360000 emus).
caption	OptionsCaptionImage	color (String) fontSize (Integer) lineSpacing (Integer) showLabel (Boolean) text (String) textAlign (String)
dpi	Integer	Dots per inch.
float	String	(left, right, center) floating image. It only applies if textWrap is not inline (default value).
height	Integer	Image height in pixels.
horizontalOffset	Integer	Given in emus (1cm = 360000 emus). Only applies if the image is not floating.
hyperlink	String	Image link.
imageAlign	String	Image alignment: right, center...
relativeToHorizontal	String	margin (default), page, column, character, leftMargin, rightMargin, insideMargin, outsideMargin. Not compatible with inline text wrapping.
relativeToVertical	String	margin, page, line (default), paragraph, topMargin, bottomMargin, insideMargin, outsideMargin. Not compatible with inline text wrapping.
scaling	Integer	% of size: 50, 100.
spacingTop	Integer	Spacing top in pixels.
spacingBottom	Integer	Spacing bottom in pixels.
spacingLeft	Integer	Spacing left in pixels.
spacingRight	Integer	Spacing right in pixels.
target	String	document (default value), defaultHeader, firstHeader, evenHeader, defaultFooter, firstFooter, evenFooter, comment, endnote or footnote. One should use this parameter in conjuction with the "rawWordML" option to later insert the image in a header or footer.
textWrap	Integer	Text wrap: 0 (inline) 1 (square) 2 (front) 3 (back) 4 (top and bottom) 5 (clear)
verticalOffset	Integer	Given in emus (1cm = 360000 emus).
width	Integer	Image width in pixels.

Code samples

Example #1

package examples.Core.addImage;

import com.javadocx.CreateDocx;
import com.javadocx.elements.*;

public class Sample1 {
    public static void main(String[] args) throws Exception {
        CreateDocx docx = new CreateDocx();

        docx.addText("In this first example we just add an image with a dashed border:");

        OptionsImage imageOptions = new OptionsImage();
        imageOptions.setImageAlign("center")
                    .setScaling(50)
                    .setSpacingTop(10)
                    .setSpacingBottom(0)
                    .setSpacingLeft(0)
                    .setSpacingRight(20)
                    .setTextWrap(0)
                    .setBorderStyle("lgDash")
                    .setBorderWidth(6)
                    .setBorderColor("FF0000");

        OptionsCaptionImage captionImageOptions = new OptionsCaptionImage();
        captionImageOptions.setShowLabel(true)
                           .setText(" Sample Image")
                           .setTextAlign("center");

        imageOptions.setCaption(captionImageOptions);

        docx.addImage("src/examples/files/img/image.png", imageOptions);

        docx.addText("This is a closing paragraph.");

        docx.createDocx("example_addImage_1");
    }
}

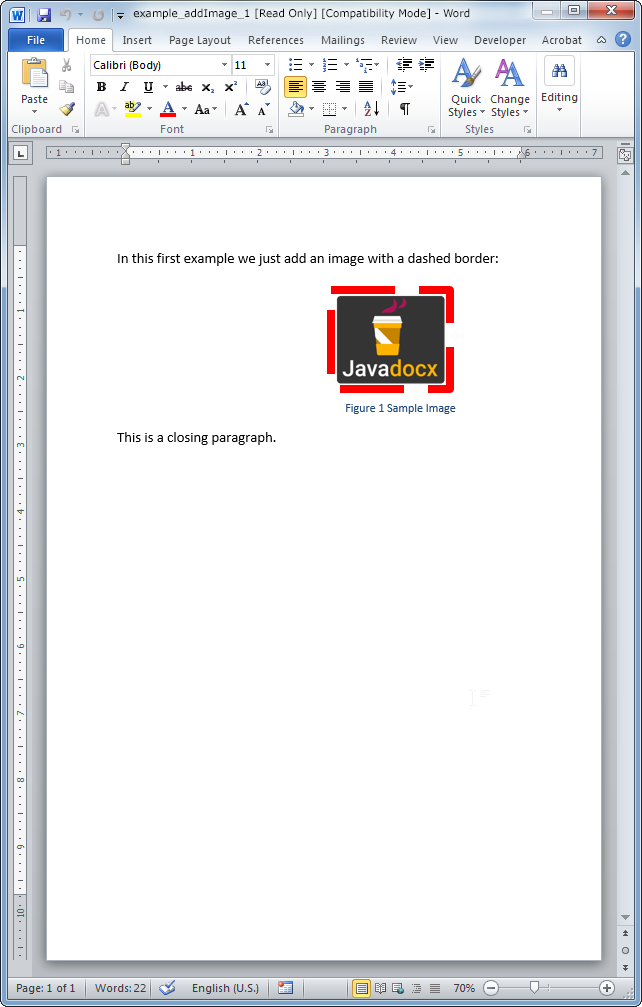

The resulting Word document looks like:

Example #2

package examples.Core.addImage;

import java.util.ArrayList;

import com.javadocx.CreateDocx;
import com.javadocx.WordFragment;
import com.javadocx.elements.*;

public class Sample2 {
    public static void main(String[] args) throws Exception {
        CreateDocx docx = new CreateDocx();

        OptionsImage imageOptions = new OptionsImage();
        imageOptions.setScaling(40)
                    .setSpacingTop(0)
                    .setSpacingBottom(0)
                    .setSpacingLeft(0)
                    .setSpacingRight(20)
                    .setTextWrap(1);

        docx.addImage("src/examples/files/img/image.png", imageOptions);

        docx.addText("There is more than one way to make that the text wraps around an image. Maybe the simplest is the one used here with the option textWrap = 1. You may also placed it on the right using the float option.");

        docx.addBreak();

        OptionsText textOptions = new OptionsText();
        textOptions.setText("Although you can have a little more control using Word fragments. This is so because in the first example the image is in a paragraph of its own while here it is inserted in the same paragraph as this text.");
        WordFragment textFragment = new WordFragment(docx);
        textFragment.addText(textOptions);

        WordFragment imageFragment = new WordFragment(docx);
        imageOptions = new OptionsImage();
        imageOptions.setScaling(40)
                    .setSpacingTop(0)
                    .setSpacingBottom(0)
                    .setSpacingLeft(20)
                    .setSpacingRight(0)
                    .setTextWrap(1)
                    .setFloatImage("right");
        imageFragment.addImage("src/examples/files/img/image.png", imageOptions);

        ArrayList<WordFragment> runs = new ArrayList<WordFragment>();
        runs.add(imageFragment);
        runs.add(textFragment);

        docx.addText(runs);

        docx.createDocx("example_addImage_2");
    }
}

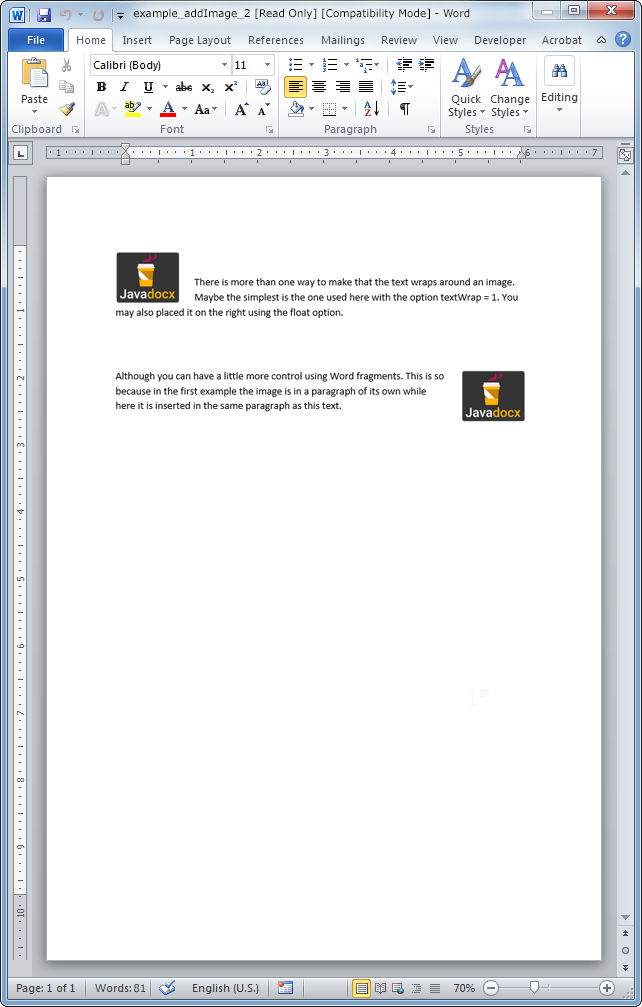

The resulting Word document looks like:
